REFOX LM-80B/E Automatic 3-in-1 Laser Marking Machine
The REFOX LM-80B/E Automatic 3-in-1 Laser Marking Machine is the most powerful all-in-one laser solution for mobile device repair. This innovative system integrates laser marking, fume extraction, and computer control in a single compact unit, eliminating the need for multiple separate devices and streamlining your workspace.
3-in-1: Laser marking, fume extraction, and computer
Built-in Fume Extractor: Advanced filtration system
60% Space Saving: Saves valuable workspace
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Powerful Laser Marking Machine

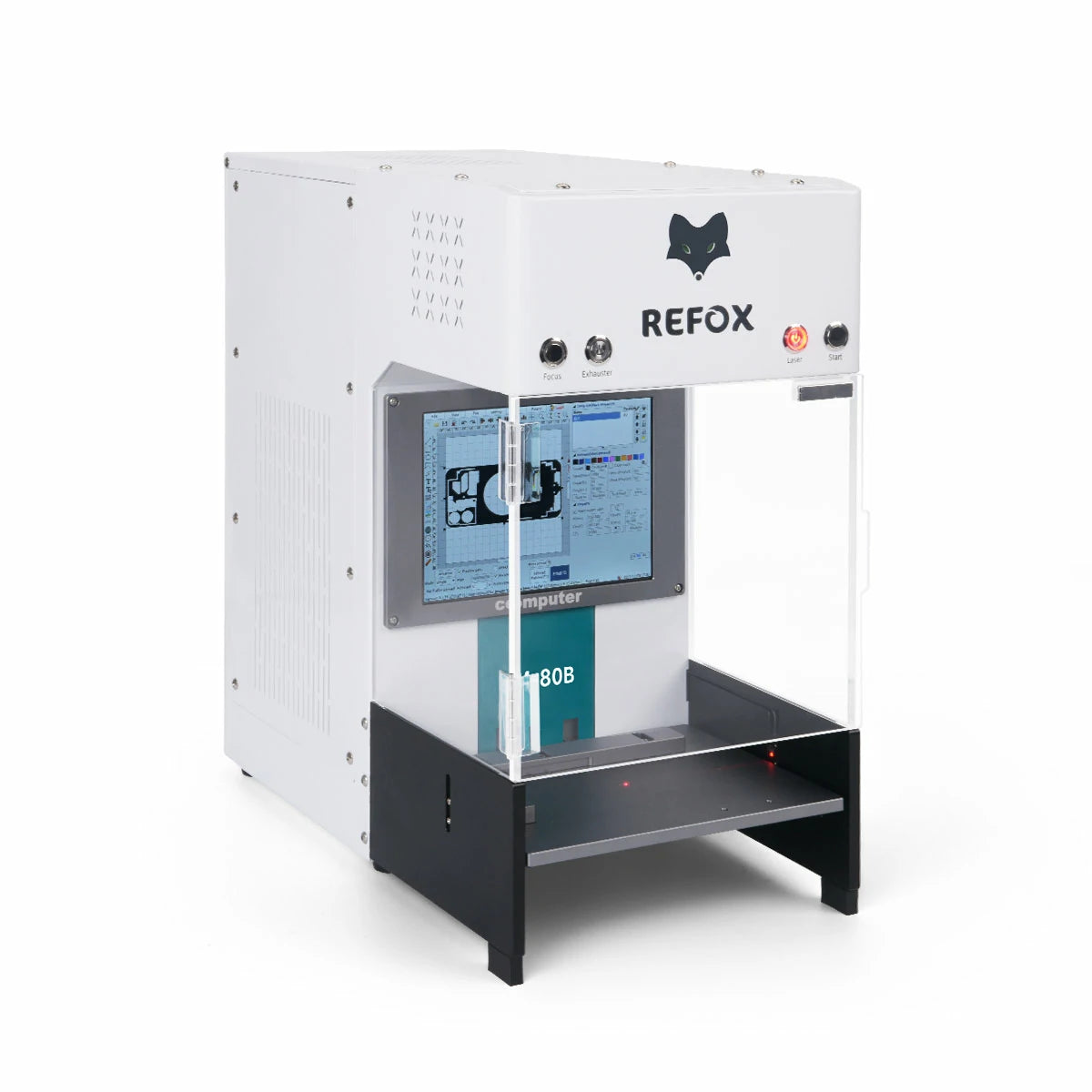

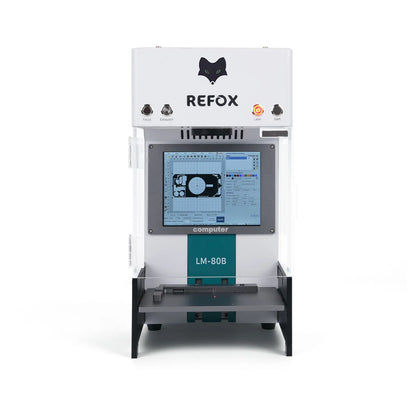

REFOX LM-80B/E combines a laser marking machine with a fume extractor and computer. It is currently one of the most powerful three-in-one laser marking machines which can remove back glass and engrave with a laser.

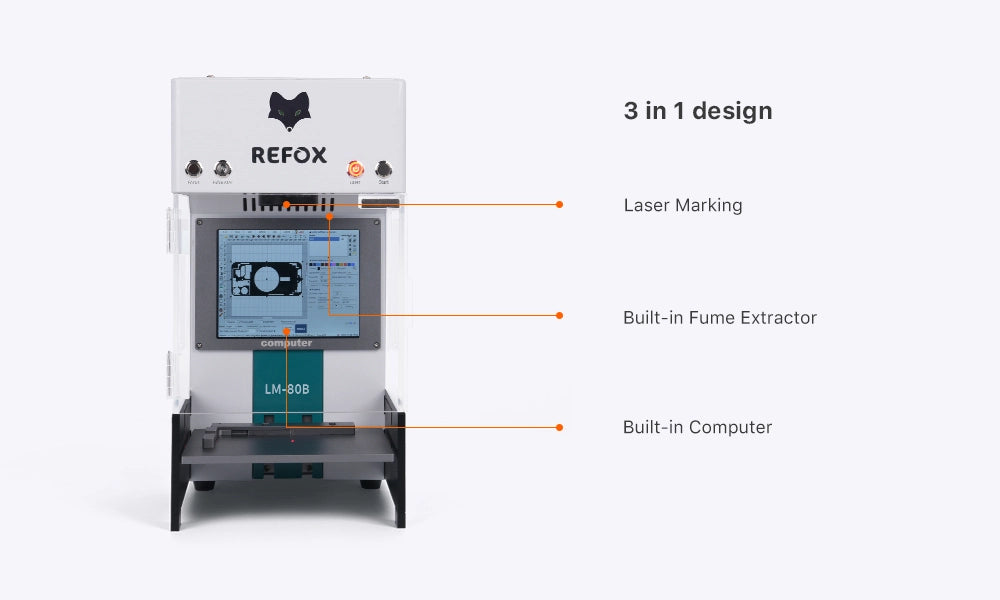

Innovative 3-in-1 Design
The REFOX LM-80B/E revolutionizes laser marking by integrating three essential components into one compact unit.
- High-precision laser marking system
- Built-in fume extraction
- Integrated computer with a built-in display interface
The Ultimate Three-in-One Laser Marking Machine
More Convenient Operation
Everything you need for efficient laser marking in one integrated system
Built-in Fume Extractor
Advanced filtration system removes harmful particles during operation
Computer & Display
Integrated computer with intuitive interface for easy operation
Software Included
Powerful marking software with extensive design capabilities

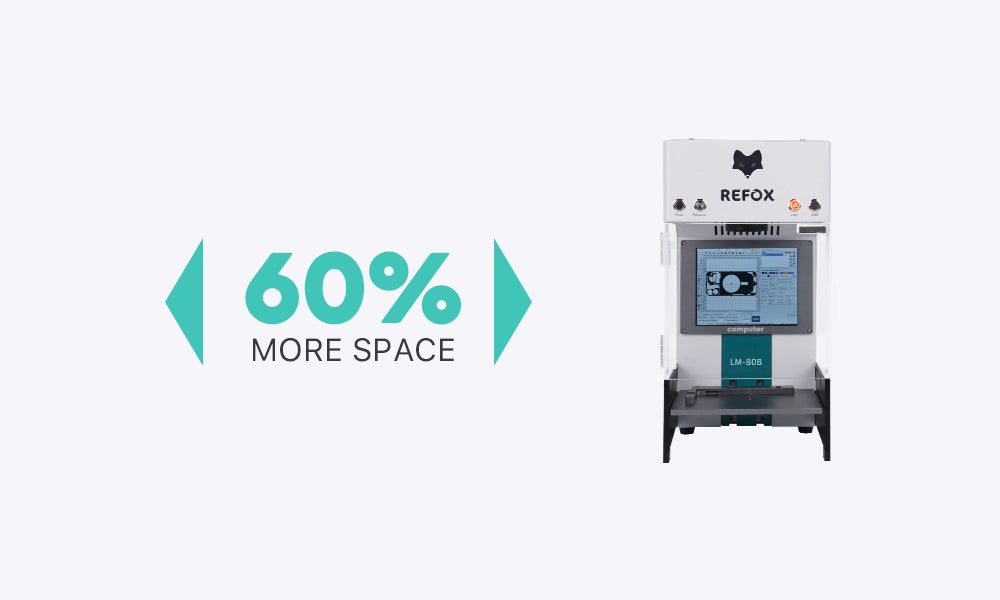

60% More Space
Compact design saves valuable workspace in your facility

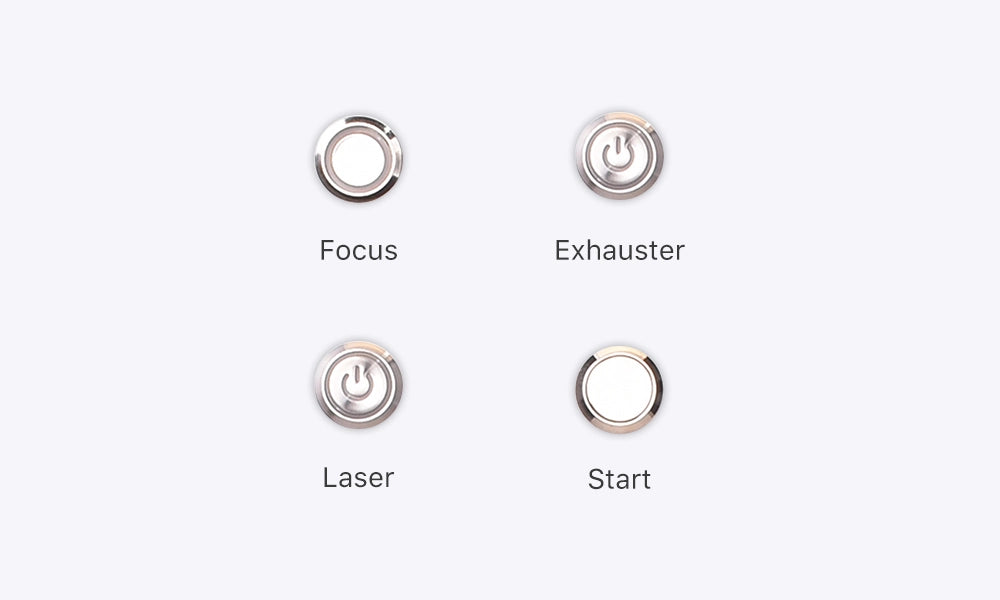

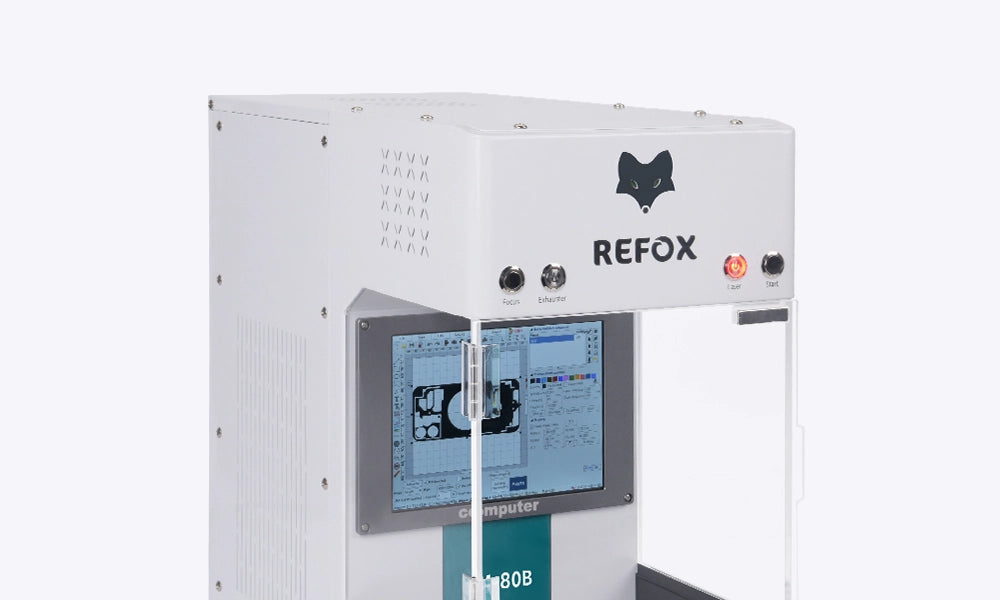

Easy Operation
The REFOX LM-80B/E is designed for simplicity and efficiency, with intuitive controls that anyone can master quickly.
- Focus: One-click autofocus function for perfect precision
- Exhauster: Control the built-in fume extraction system
- Laser: Simple on/off control for the laser system
- Start: Initiate the laser marking process with one touch

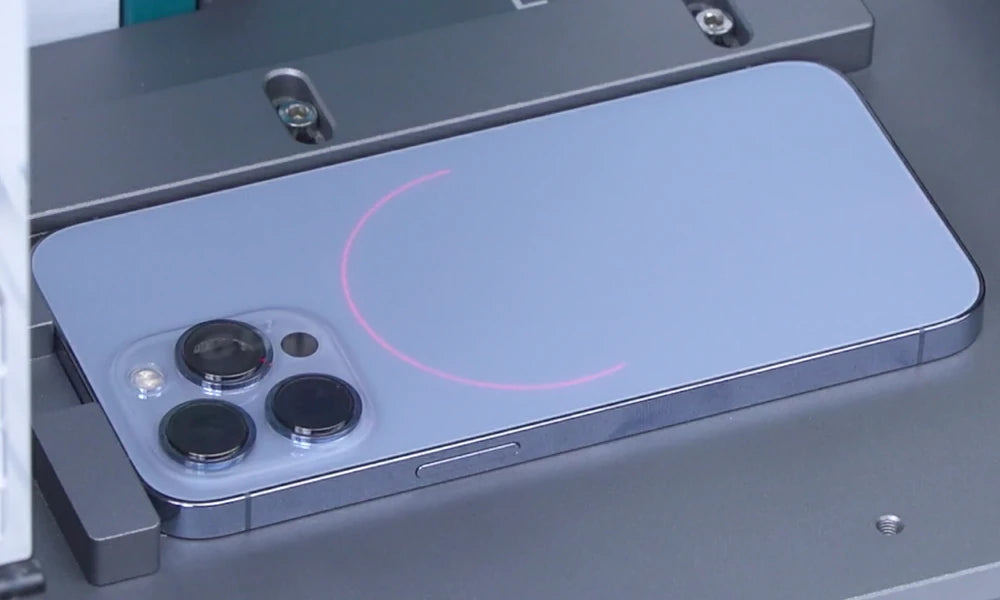

Infrared Autofocus
Precision infrared sensor with one-click autofocus for perfect marking results every time.
Applicable Scenarios
Expand your business capabilities with the versatile REFOX LM-80B/E

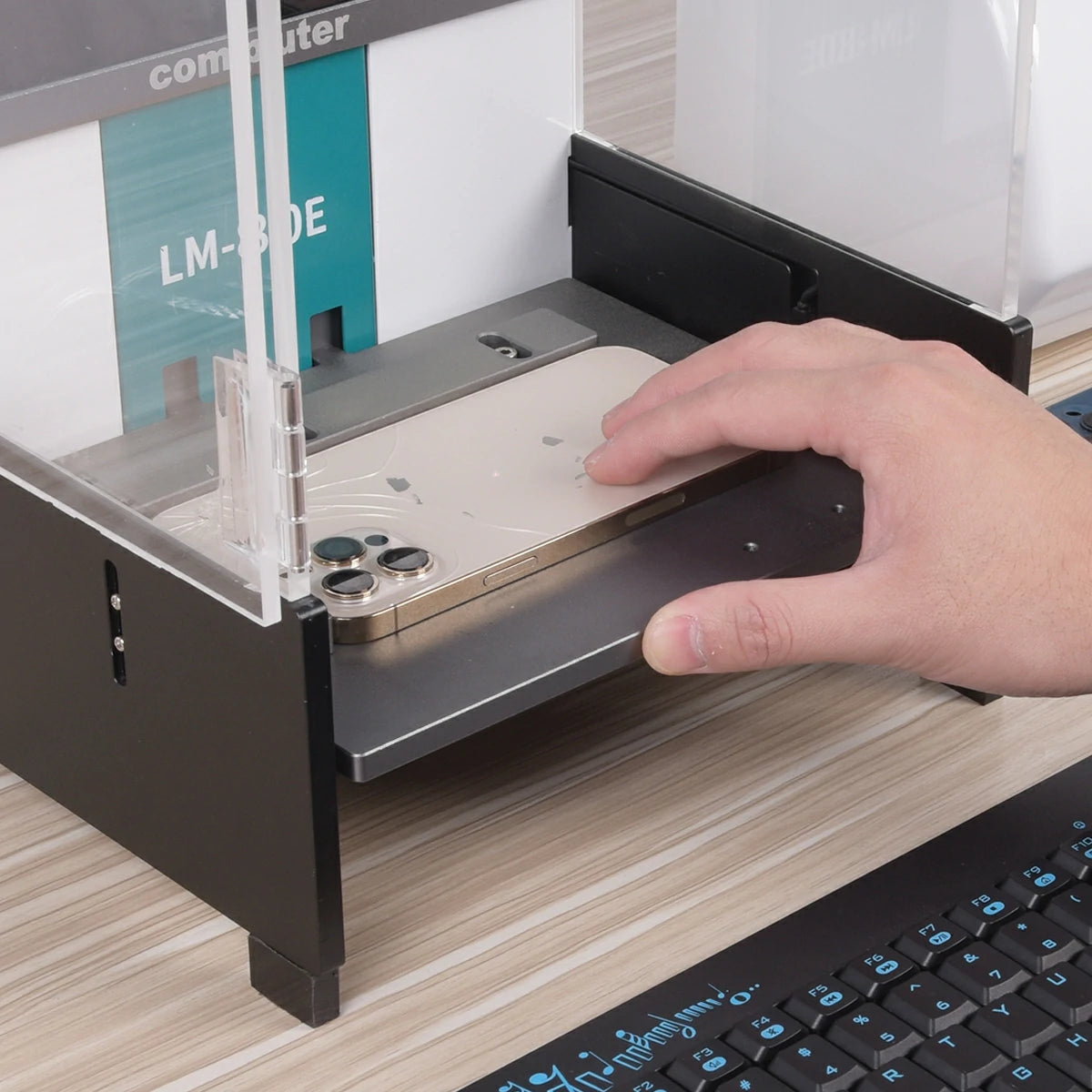

Back Glass Repair
Perfect for removing and engraving back glass on smartphones and other devices

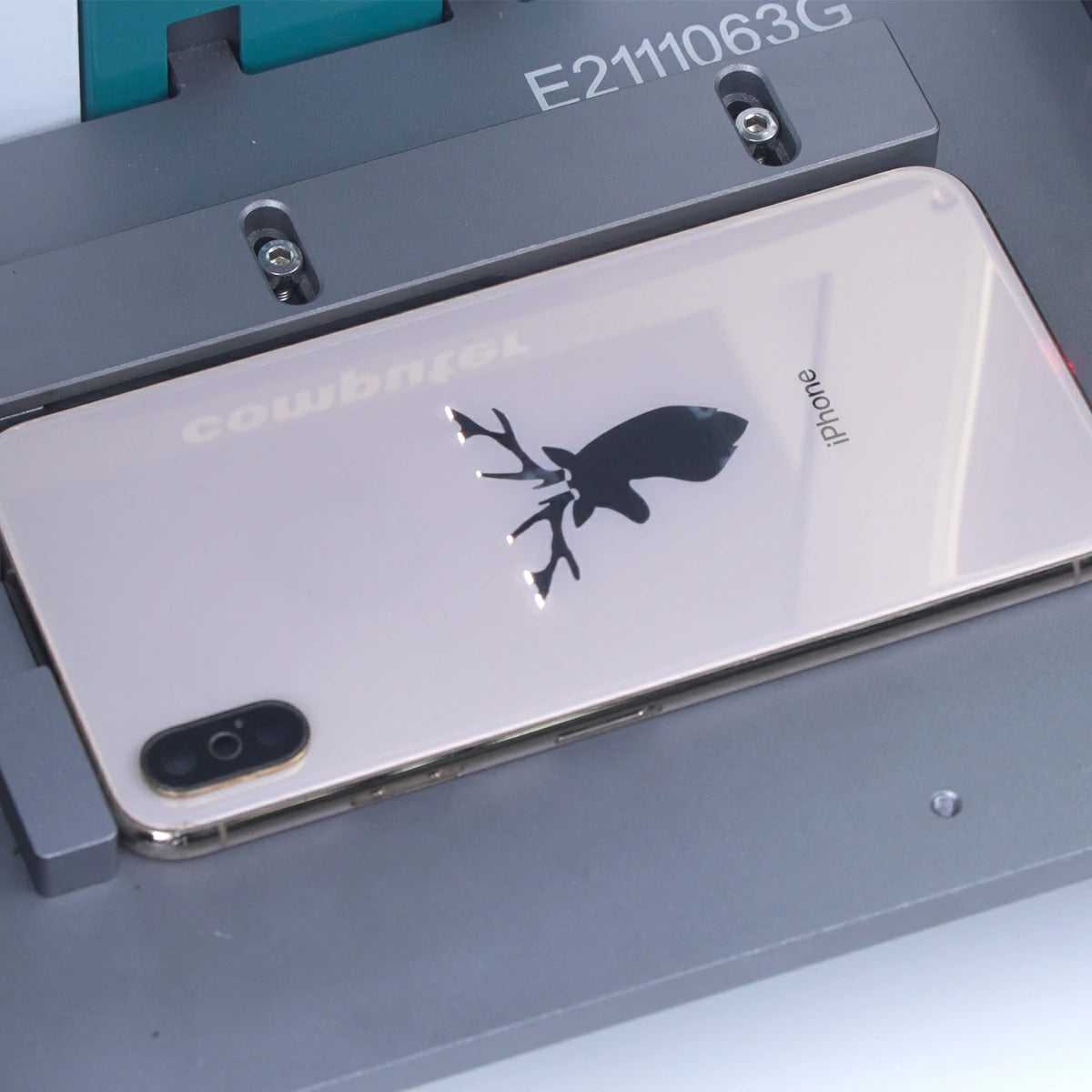

Electronics Marking
Precise marking on electronic components and devices

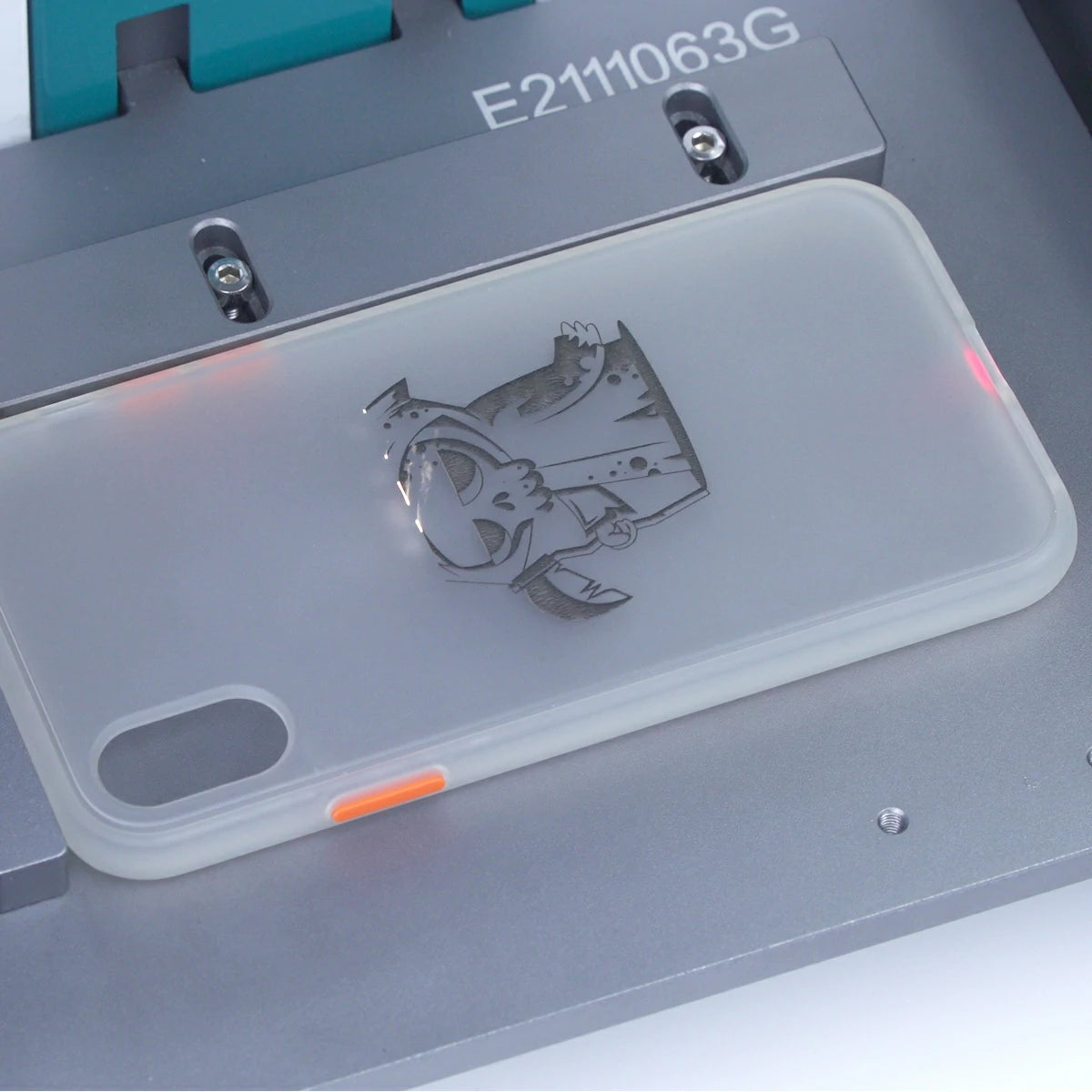

Accessories Marking
Ideal for engraving logos, text, and designs on various accessories
Specifications
General Info
- Laser Type: Fiber Laser
- Laser Power: 6W / 20W (Selectable)
- Marking Area: 100mm x 100mm
- Marking Speed: ≤7000mm/s
- Repeat Accuracy: ±0.001mm
- Cooling Method: Air Cooling
Electrical
- Working Voltage: 110V / 220V (Auto-switching)
- Power Consumption: ≤500W
- Plug Type: EU, US, UK, AU (Configurable)
- Noise Level: ≤50 dB
- Operating Temperature: 10°C to 35°C
- Operating Humidity: 10% to 80% (Non-condensing)
Dimensions & Weight
- Net Dimensions: 390mm × 240mm × 460mm
- Gross Dimensions: 490mm × 335mm × 585mm
- Net Weight: 18 kg
- Gross Weight: 25 kg
- Packing Material: Foam + Carton
Download Related Softwares
REFOX LM-80B
Laser Marking Machine Drawing
REFOX LM-80E
Laser Marking Machine Drawing
REFOX LM-80B & LM-80E
Laser Machine user manual
REFOX LM-80B & LM-80E
Firmware 25.2.8
The Password of the Instruction Video is included in your ordercard. Or you can contact us at contact@refoxtech.com
FAQs
What materials can the LM-80B/E mark on?
The REFOX LM-80B/E can mark a wide variety of materials including metals (stainless steel, aluminum, brass), plastics, ceramics, glass, and various coated surfaces. It's particularly effective at smartphone back glass removal and engraving.
How does the built-in fume extractor work?
The integrated fume extraction system uses a high-efficiency fan to draw fumes and particles away from the marking area. These are then passed through a multi-stage filtration system that includes a pre-filter and HEPA filter to remove harmful particles before releasing clean air back into the environment.
What software is included with the machine?
The LM-80B/E comes with REFOX Marking Software, which includes intuitive design tools, batch processing capabilities, and support for various file formats (including DXF, AI, PLT, BMP, JPG). The software also features automatic serial numbering, date/time stamping, and barcode/ QR code generation.
What is the warranty period and what does it cover?
The REFOX LM-80B/E comes with a 13-month extended warranty that covers manufacturing defects and component failures. The warranty includes the laser source, mainboard, and all electronic components. Consumable items like filters are covered for 3 months. Technical support is available throughout the warranty period.
How much training is required to operate the machine?
The LM-80B/E is designed for easy operation. Most users can learn basic functions within 1-2 hours of training. Comprehensive video tutorials and documentation are provided, and our technical support team is available to assist with any questions. Advanced features may require additional practice to master fully.
