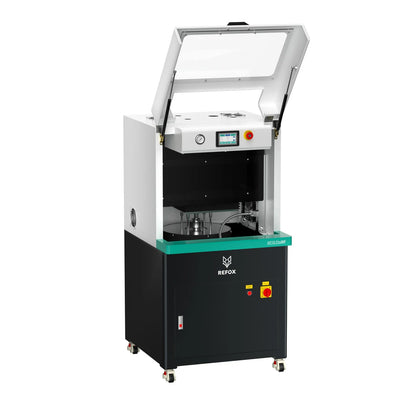

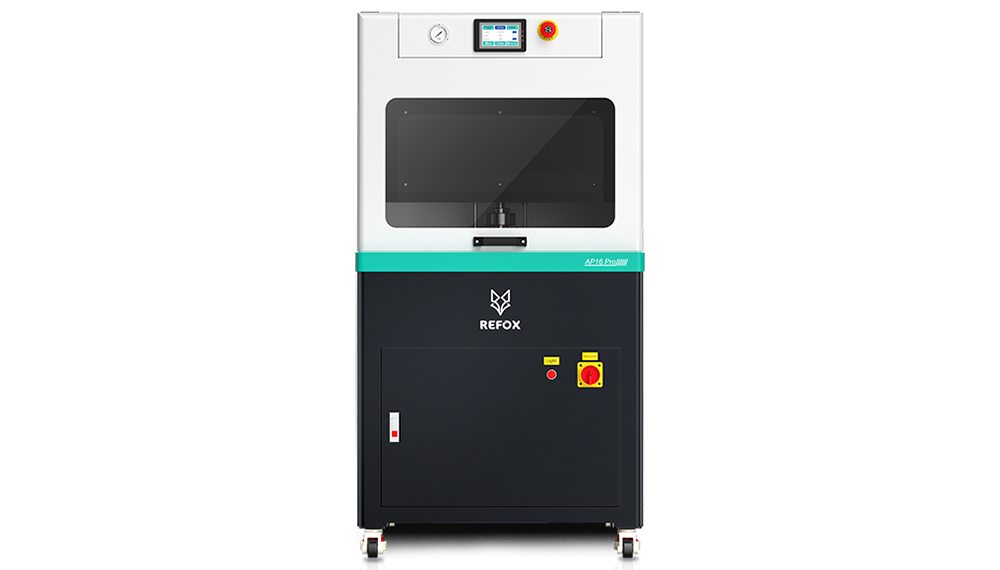

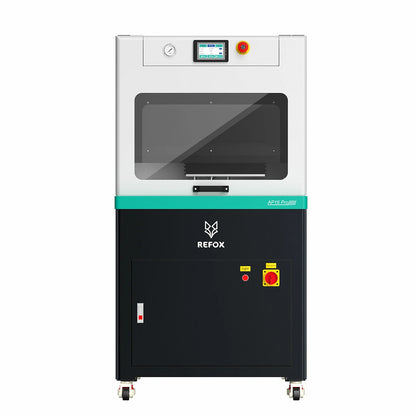

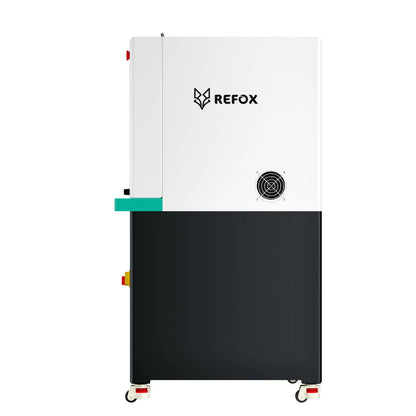

REFOX AP16 Pro Automatic Grinding & Polishing Machine
The REFOX AP16 Pro Automatic Grinding & Polishing Machine delivers professional-grade screen restoration for mobile phone repair technicians. Using advanced subtractive method technology, this machine removes scratches, oxidation, and imperfections to restore screens to like-new condition.
16-Device Capacity: Polishes up to 16 devices simultaneously
Motorized Precision: Adjustable pressure for iPhone 12+ and newer models
Quick Maintenance: 30-second brush head replacement
Compact Design: High capacity in minimal floor space
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
16 Device Slots
The REFOX AP16 Automatic Grinding & Polishing Machine is tailored for mobile phone refurbishment. It uses a precise subtractive method to gently remove surface scratches from screens, restoring the glass while slightly reducing its thickness.
Key Features
High-Capacity Performance
The AP16 features a specialized grinding brush and adjustable pressure settings, making it particularly effective for polishing iPhone 12 and newer models. Its innovative design ensures that screens can be polished without the risk of dents or damage.
- Optimized for iPhone 12 and newer models
- Adjustable pressure settings for different devices
- Specialized grinding brush design
- Damage-free polishing process
Adjustable Grinding Pressure
Grinding pressure can be adjusted easily with the built-in digital screen
Simplified Operation
The AP16 Pro features an intuitive design that reduces operator training time and minimizes errors. With fully motorized components and adjustable settings, it delivers consistent results with minimal manual intervention.
- Fully motorized grinding disc operation
- Adjustable pressure for different device types
- Intuitive control panel with visual indicators
- Automated water circulation system
Universal Device Compatibility
Designed for today's diverse device market, the AP16 Pro refurbishes screens and back covers for iPhone 12 and later models, as well as Android smartphones, including those with curved edges and special coatings.
iPhone 13
iPhone 14
iPhone 15
iPhone 16
Before vs After Polishing
See how our meticulous process restores screens to like-new condition, eliminating scratches and imperfections while preserving display clarity.
Before: Scratched
After: Polished
Polishing Time References
This is only for reference, the actual polishing time will vary based on the machine model, working setting, scratches level, etc.
Level 1 - Very Light Scratches
Level 2 - Moderate Scratches
Level 3 - Scratches that can be felt by the fingertip
AP16 vs AP25
Maximum Grinding Capacity
16 devices
Maximum Grinding Capacity
25 devices
Polyurethane Grinding Brush Diameter
400 mm
Polyurethane Grinding Brush Diameter
400 mm
Grinding Disc Diameter
650 mm
Grinding Disc Diameter
820 mm
Grinding Brush Motor Power
1.0KW
Grinding Brush Motor Power
750W
Grinding Disc Motor Power
2.2KW
Grinding Disc Motor Power
2.2KW
Maximum Machine Power
4KW
Maximum Machine Power
4KW
Water Pump Power
120W
Water Pump Power
120W
Water Tank Capacity
10 L
Water Tank Capacity
20 L
Power Input
AC 220V/110V
Power Input
AC 220V/110V
Upgraded Polishing Machines
Additional Features
In addition to its core capabilities, the AP25 Pro includes several advanced features that improve efficiency, safety, and performance.
Machine Status Indicator
Real-time visual indicators display current operational status including power, motor operation, water flow, and brush condition. Color-coded LED system provides instant feedback on machine health and operation phase.
Temperature Monitoring System
Integrated thermal sensors monitor critical components to prevent overheating. Automatic adjustment of cooling systems ensures optimal operating temperatures for consistent polishing quality and extended machine lifespan.
Automatic Stop Upon Door Opening
Safety-first design with automatic shutdown when the machine door is opened during operation. This prevents accidents and ensures operator safety while allowing immediate intervention when needed.
Professional Supplies
Complement your AP16 with REFOX's professional-grade supplies
REFOX Waterproof Molds (iP 6-16 Series)
- Accurate alignment with excellent waterproof effect
- Easy to take out with good use experience
- Sturdy and durable construction
REFOX Waterproof Adhesive
- High efficiency with short curing time
- Strong adhesion with good waterproof effect
- Eco-friendly material
REFOX Polishing Powder
- Good polishing effect with high wear resistance
- High purity with multiple reuse times
- Eco-friendly material with no toxicity and pollution
REFOX Oleophobic Coating
- Strong adhesion with good permeability
- High-temperature resistance with long service life
- Ready to use after application without the need for curing
Specifications
General Information
- Brand: REFOX
- Model: AP16 Pro
- Product Name: Polishing Machine
- Maximum Grinding Capacity: 16 devices
- Water Pump Power: 120W
- Water Tank Capacity: 10L
Dimensions & Weight
- Product Size: 750 x 810 x 1444 mm
- Package Size: 850 x 900 x 1650 mm
- Net Weight: 300 kg
- Gross Weight: 340 kg
Other Details
- Polyurethane Grinding Brush Diameter: 400 mm
- Grinding Disc Diameter: 820 mm
- Grinding Brush Motor Power: 750W
- Grinding Disc Motor Power: 2.2KW
- Maximum Machine Power: 4KW
FAQs
What types of scratches can the AP16 Pro effectively polish?
The AP16 Pro is tailored for polishing minor surface scratches on mobile phone screens. It is not effective for deep scratches with a noticeable concave feel or a glass-like texture. The machine employs a subtractive method to gently remove surface imperfections while slightly reducing the glass thickness.
How does the double capacity feature work in the compact design?
The AP16 Pro, while maintaining a footprint similar to traditional 8-slot polishing machines, employs an optimized layout and efficient design to handle 16 devices at once. This is made possible by precise engineering of the grinding disc and holder arrangement, which maximizes the available space without sacrificing performance.
What is the advantage of the 30-second brush head replacement?
The quick-change brush head system simplifies the process by replacing the time-consuming aluminum plate installations used in older machines. With a 30-second replacement time, it minimizes downtime, boosts efficiency, and enables repair shops to polish more devices in less time.
Why is the AP16 designed without auxiliary wheels?
The removal of auxiliary wheels eliminates the grinding disc jams often seen in traditional designs. This leads to a smoother and more stable polishing process, requiring less maintenance and extending the machine's lifespan. The stable operation also ensures consistent polishing results across all devices.
What are the optional customizable features available?
The AP16 Pro includes optional features like temperature monitoring, machine status indicators, and slurry flow tracking. These additions can be customized to suit specific operational requirements, ensuring reliable performance across various environments.
