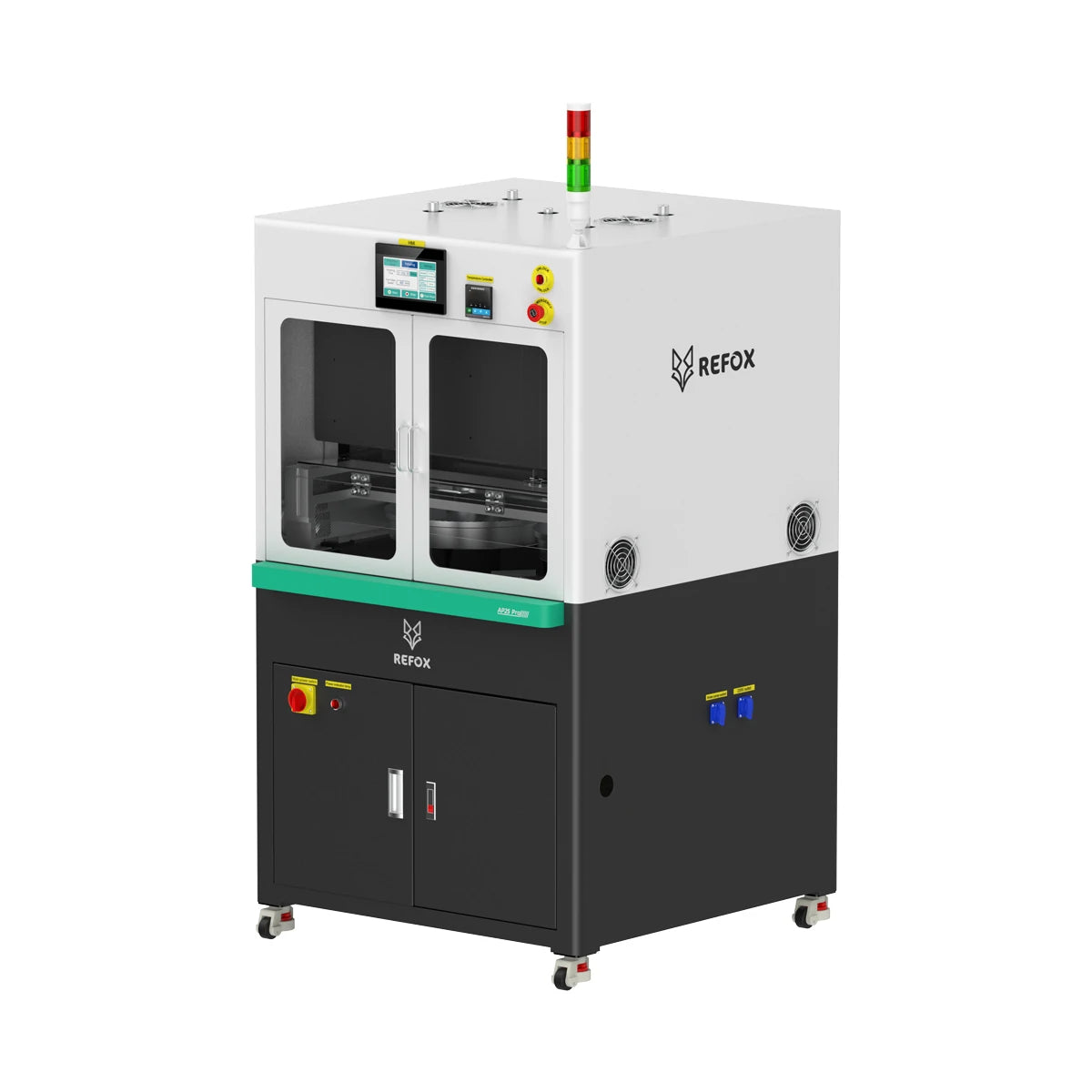

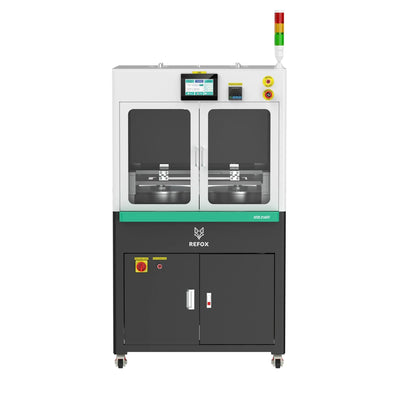

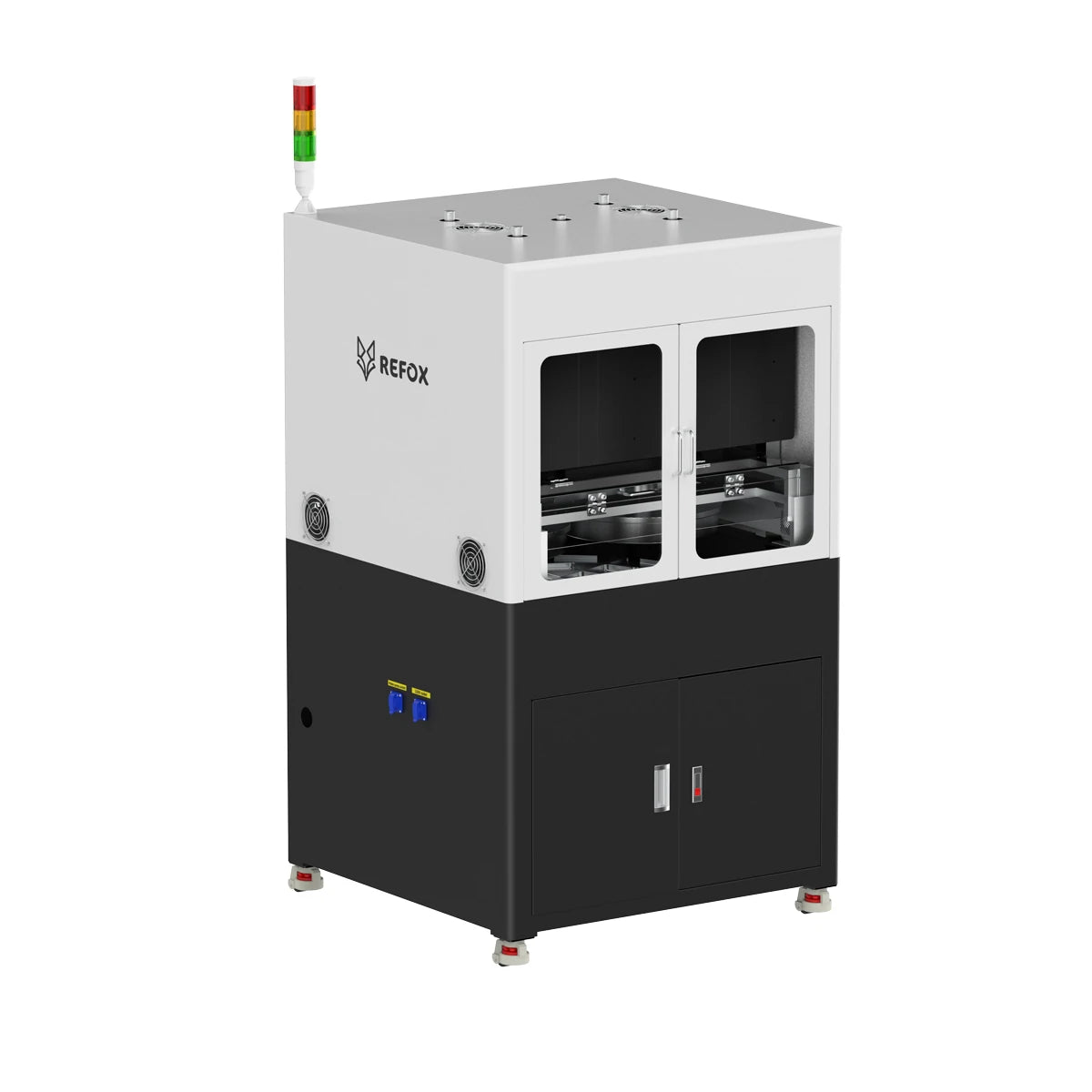

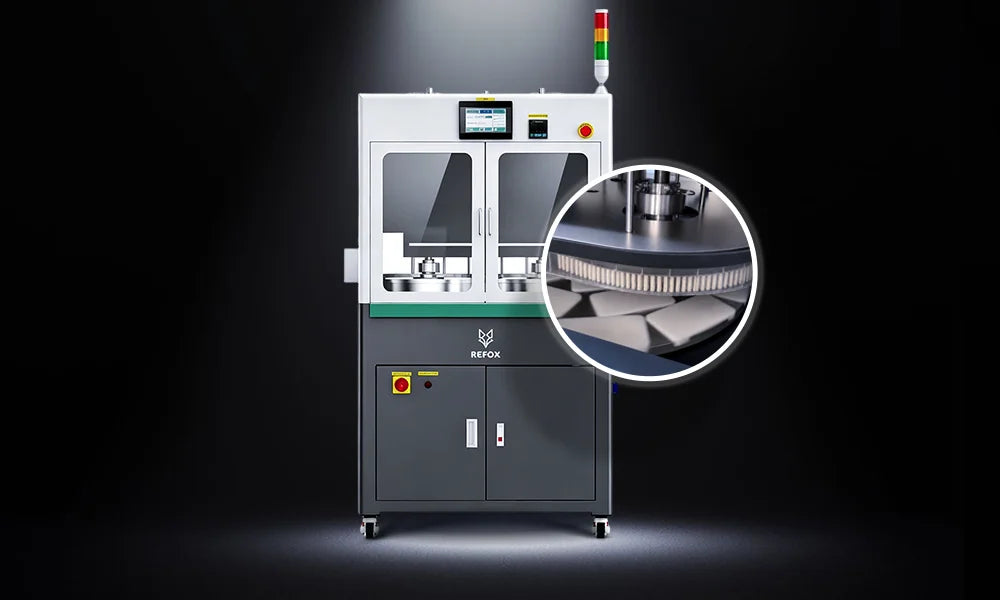

REFOX AP25 Pro Automatic Grinding & Polishing Machine
The REFOX AP25 Pro Automatic Grinding & Polishing Machine is a high-capacity, professional-grade solution designed for busy repair shops and refurbishment centers. With its robust 520kg construction, this machine delivers consistent, flawless screen restoration results at scale.
25-Device Capacity: Polishes up to 25 devices simultaneously
Motorized Precision: Upgraded motor-operated grinding brush
Quick Maintenance: 30-second brush head replacement
Compact Design: High capacity in minimal floor space
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Key Features
High-Capacity Performance
The AP25 Pro is engineered for high-volume refurbishment operations with the ability to polish up to 25 devices simultaneously. This significantly increases throughput while maintaining consistent quality across all devices.
- 25-device simultaneous polishing capacity
- 820mm grinding disc for maximum coverage
- Optimized workflow for batch processing
- Reduced processing time per device

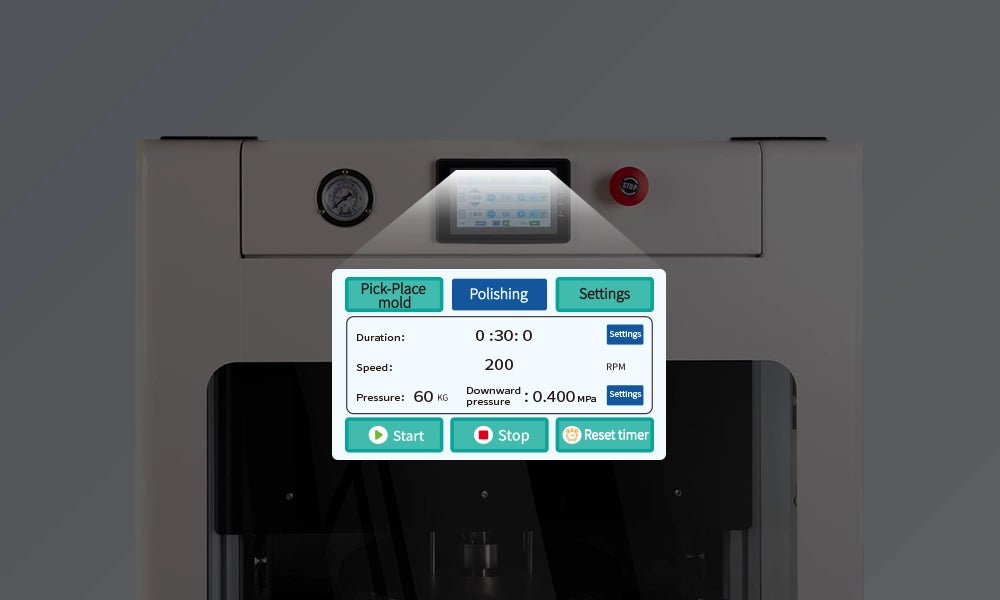

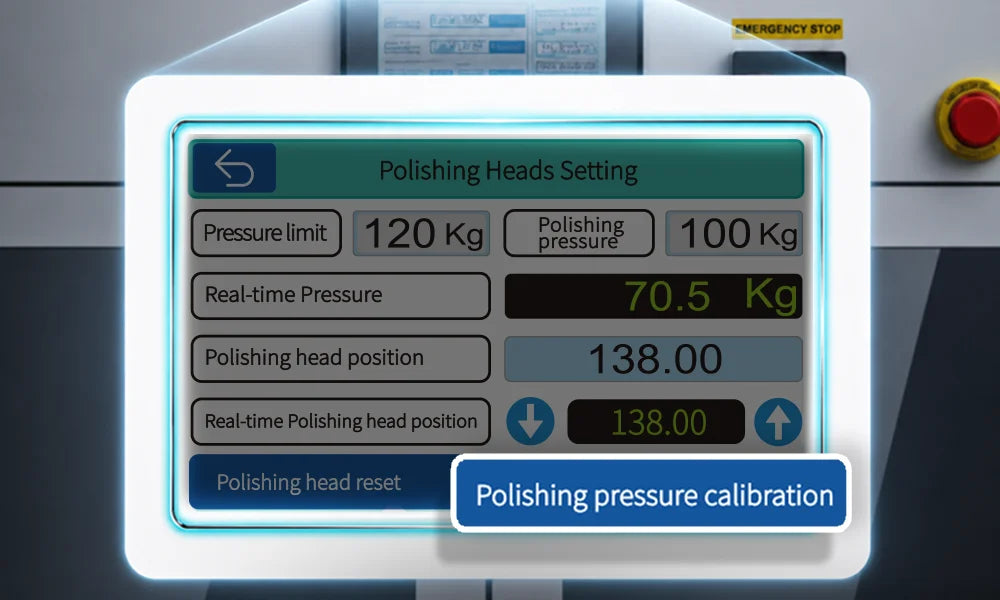

Adjustable Grinding Pressure
Grinding pressure can be adjusted easily with the built-in digital screen

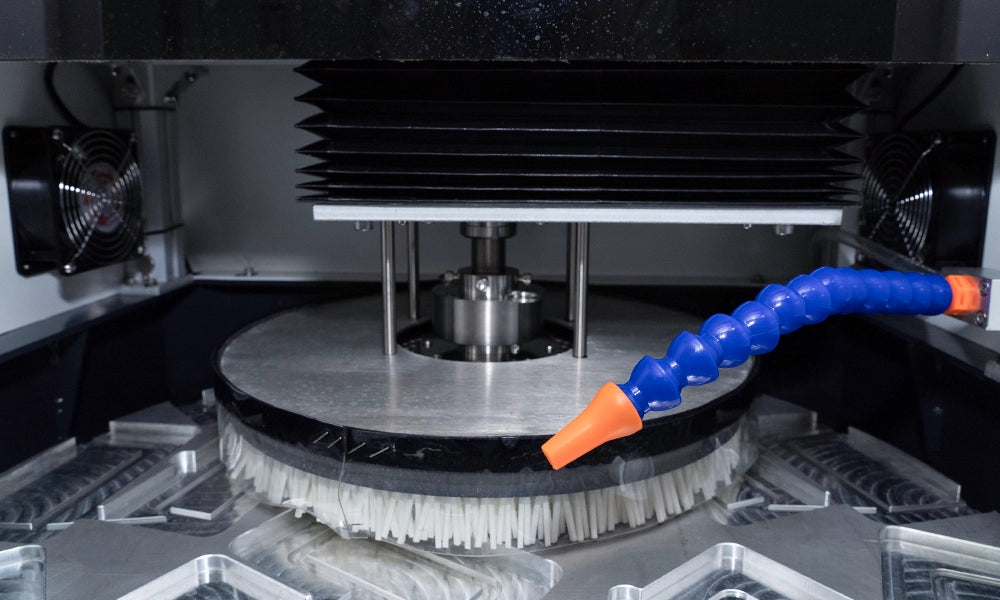

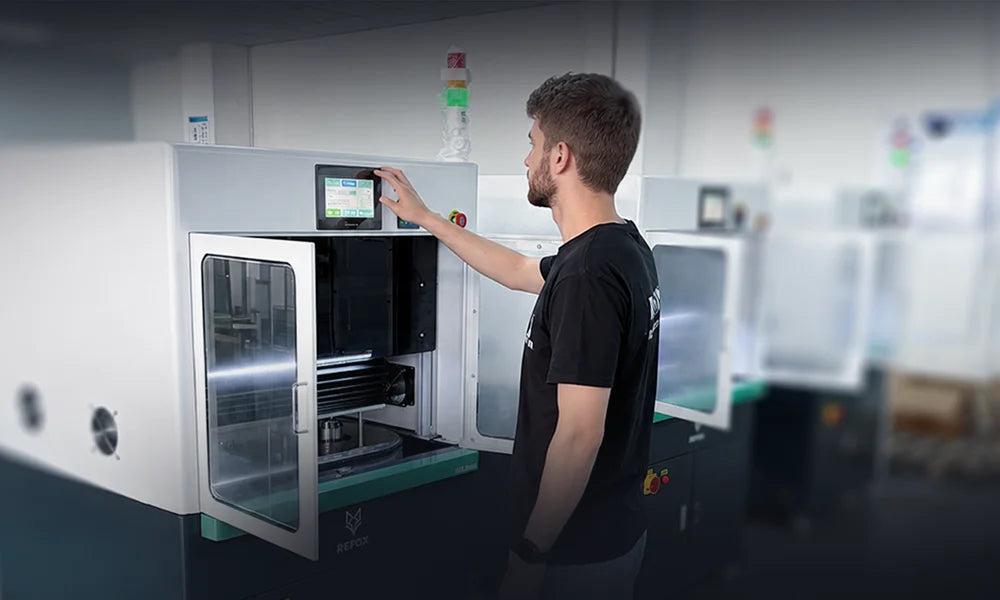

Simplified Operation
The AP25 Pro features an intuitive design that reduces operator training time and minimizes errors. With fully motorized components and adjustable settings, it delivers consistent results with minimal manual intervention.
- Fully motorized grinding disc operation
- Adjustable pressure for different device types
- Intuitive control panel with visual indicators
- Automated water circulation system
Universal Device Compatibility
Designed for today's diverse device market, the AP25 Pro refurbishes screens and back covers for iPhone 12 and later models, as well as Android smartphones, including those with curved edges and special coatings.

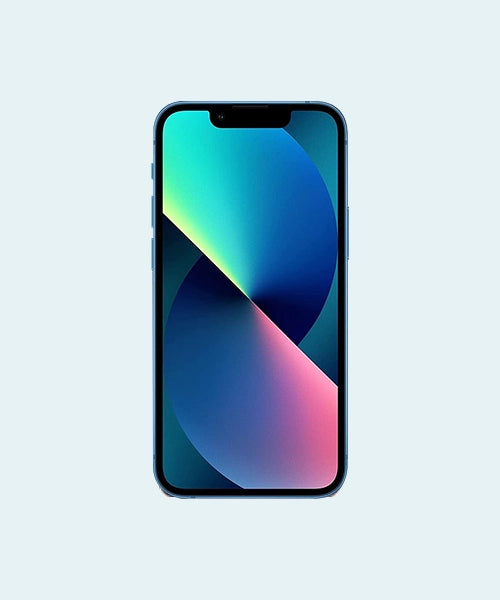

iPhone 13
iPhone 14

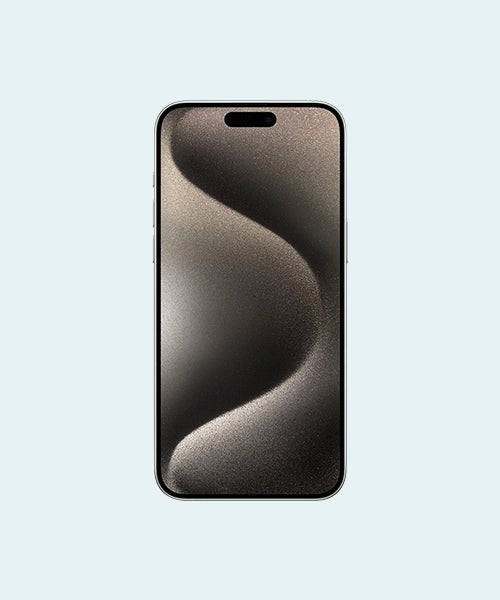

iPhone 15
iPhone 16
Before vs After Polishing
See how our meticulous process restores screens to like-new condition, eliminating scratches and imperfections while preserving display clarity.
Before: Scratched
After: Polished
AP16 vs AP25
Maximum Grinding Capacity
16 devices
Maximum Grinding Capacity
25 devices
Polyurethane Grinding Brush Diameter
400 mm
Polyurethane Grinding Brush Diameter
400 mm
Grinding Disc Diameter
650 mm
Grinding Disc Diameter
820 mm
Grinding Brush Motor Power
1.0KW
Grinding Brush Motor Power
750W
Grinding Disc Motor Power
2.2KW
Grinding Disc Motor Power
2.2KW
Maximum Machine Power
4KW
Maximum Machine Power
4KW
Water Pump Power
120W
Water Pump Power
120W
Water Tank Capacity
10 L
Water Tank Capacity
20 L
Power Input
AC 220V/110V
Power Input
AC 220V/110V
Upgraded Polishing Machines
Additional Features
In addition to its core capabilities, the AP25 Pro includes several advanced features that improve efficiency, safety, and performance.

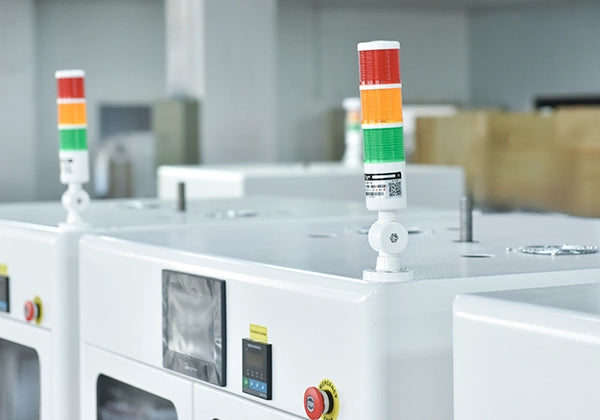

Machine Status Indicator
Real-time visual indicators display current operational status including power, motor operation, water flow, and brush condition. Color-coded LED system provides instant feedback on machine health and operation phase.

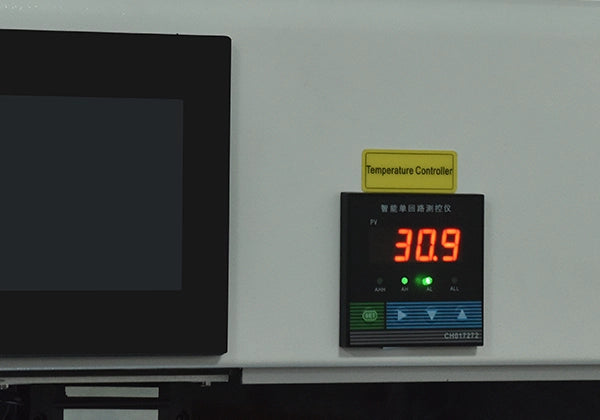

Temperature Monitoring System
Integrated thermal sensors monitor critical components to prevent overheating. Automatic adjustment of cooling systems ensures optimal operating temperatures for consistent polishing quality and extended machine lifespan.

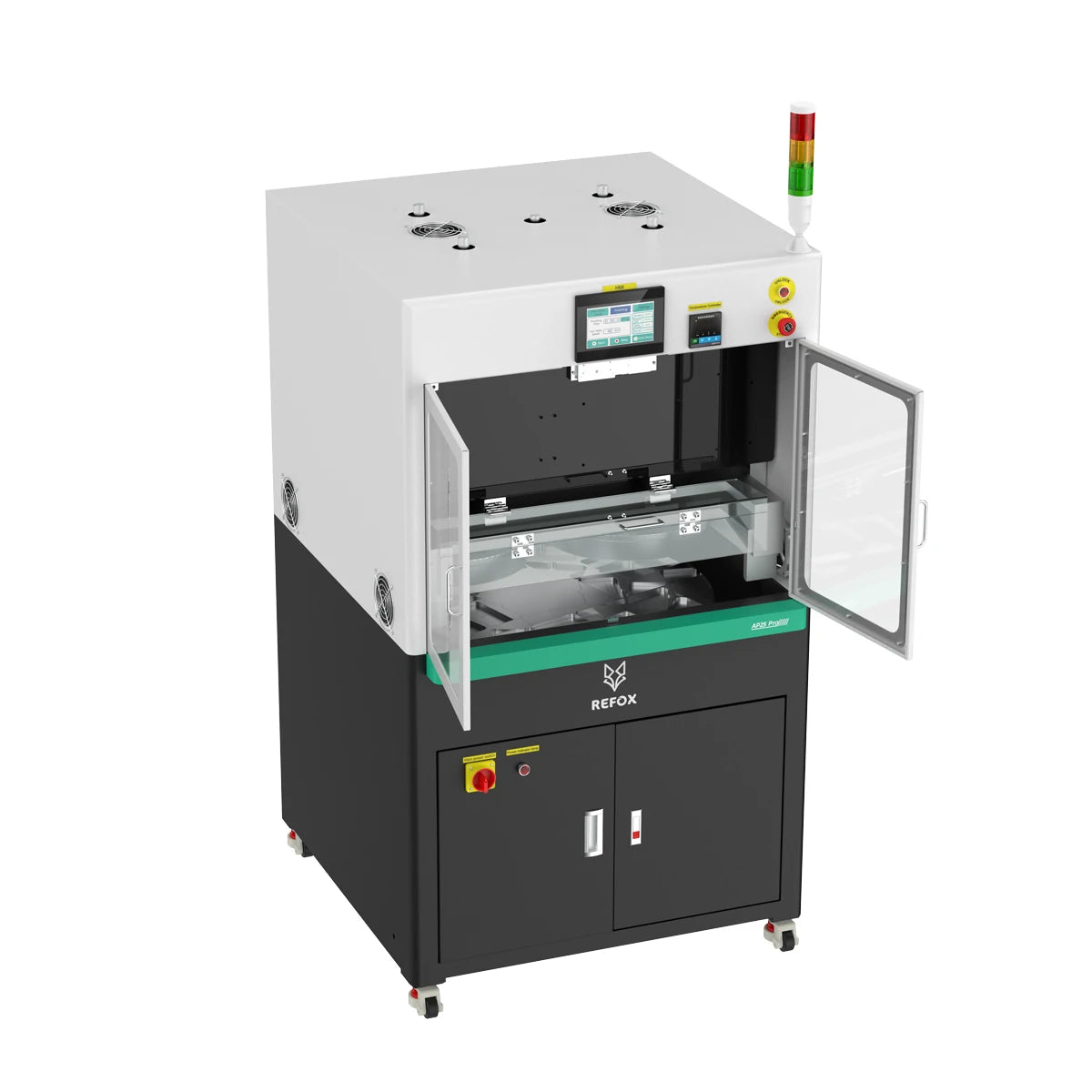

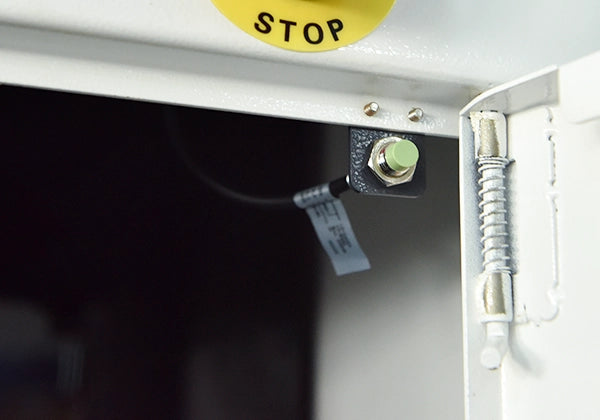

Automatic Stop Upon Door Opening
Safety-first design with automatic shutdown when the machine door is opened during operation. This prevents accidents and ensures operator safety while allowing immediate intervention when needed.
Professional Supplies
Complement your AP25 with REFOX's professional-grade supplies
REFOX Waterproof Molds (iP 6-16 Series)
- Accurate alignment with excellent waterproof effect
- Easy to take out with good use experience
- Sturdy and durable construction
REFOX Waterproof Adhesive
- High efficiency with short curing time
- Strong adhesion with good waterproof effect
- Eco-friendly material
REFOX Polishing Powder
- Good polishing effect with high wear resistance
- High purity with multiple reuse times
- Eco-friendly material with no toxicity and pollution
REFOX Oleophobic Coating
- Strong adhesion with good permeability
- High-temperature resistance with long service life
- Ready to use after application without the need for curing
Polishing Time References
This is only for reference, the actual polishing time will vary based on the machine model, working setting, scratches level, etc.
Level 1 - Very Light Scratches
Level 2 - Moderate Scratches
Level 3 - Scratches that can be felt by the fingertip
Specifications
General Information
- Brand: REFOX
- Model: AP25 Pro
- Product Name: Polishing Machine
- Maximum Grinding Capacity: 25 devices
- Water Pump Power: 120W
- Water Tank Capacity: 20L
Dimensions & Weight
- Product Size: 900 x 900 x 1600 mm
- Package Size: 1140 x 1140 x 1920 mm
- Net Weight: 420 kg
- Gross Weight: 520 kg
Other Details
- Polyurethane Grinding Brush Diameter: 400 mm
- Grinding Disc Diameter: 820 mm
- Grinding Brush Motor Power: 750W
- Grinding Disc Motor Power: 2.2KW
- Maximum Machine Power: 4KW
Upgarde to AP 25 Pro
AP 25 Pro
Automatic Grinding and Polishing Machine
REFOX AP25 Pro Polishing Machine — New UI Operation Video
REFOX AP25 Pro Polishing Machine — UI Upgrade Instructional Video
FAQs
What is the maximum number of devices the AP25 Pro can polish at once?
The AP25 Pro has a maximum capacity of 25 devices per polishing cycle. This high-capacity design makes it ideal for large-scale refurbishment operations where throughput is critical.
How long does it take to replace the grinding brush head?
The grinding brush head can be replaced in approximately 30 seconds thanks to our quick-release mechanism. This significantly reduces maintenance downtime compared to traditional polishing machines.
Is the AP25 Pro compatible with the latest iPhone models?
Yes, the AP25 Pro is specifically designed to work effectively with iPhone 12 and all newer models. This includes those with curved edges and special screen coatings. It also works with most Android smartphones.
What power requirements does the AP25 Pro have?
The AP25 Pro operates on standard AC 220V/110V power. The maximum machine power consumption is 4KW, with separate motors for the grinding brush (750W) and grinding disc (2.2KW).
How does the water circulation system work?
The AP25 Pro features a 20L water tank with a 120W pump that continuously circulates water during operation. This system cools the grinding process, removes debris, and ensures consistent polishing results.
